Diamond Crystal Diagrams from Goldschmidt's Atlas der Krystalformen

Common crystal forms found in natural diamond crystals

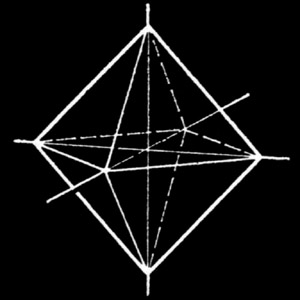

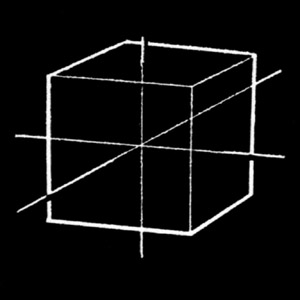

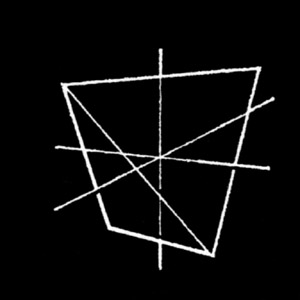

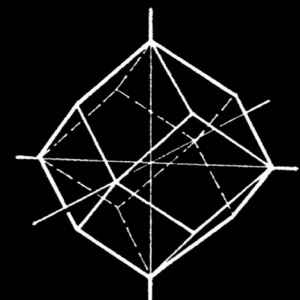

Cubic Diamond Crystal 6 crystal faces	Octahedral Diamond Crystal 8 Crystal Faces	Dodecahedral Diamond Crystal 12 Crystal Faces	Tetrahedral Diamond Crystal (rare) 4 Crystal Faces

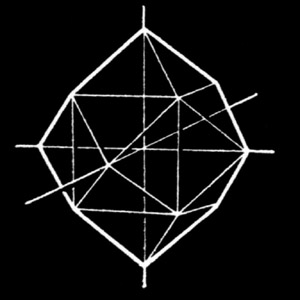

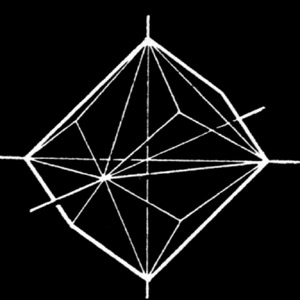

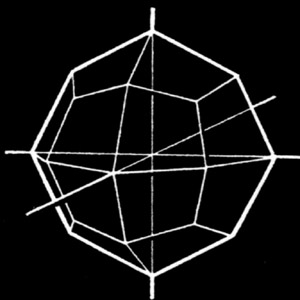

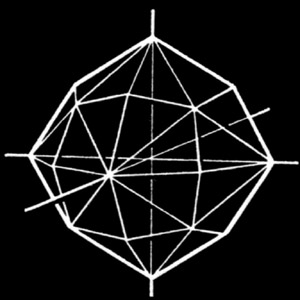

Trapezohedral Diamond Crystal 24 Crystal Faces	Tetrahexahedral Diamond Crystal 24 Crystal Faces	Trisoctahedral Diamond Crystal 24 Crystal Faces	Hexoctahedral Diamond Crystal 48 Crystal Faces

What is a Macle?

"Macle" is French for "twin" and is used to describe Spinel-law twinned diamond crystals.

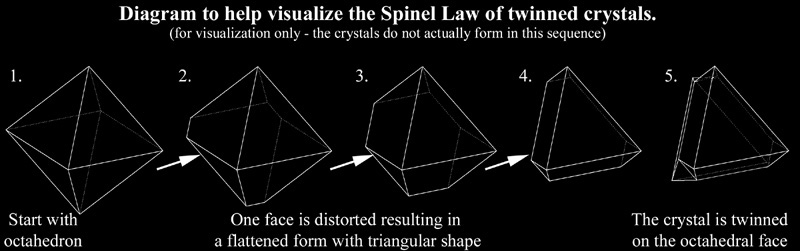

Below is a diagram to help understand why a Macle Diamond has a triangular shape.

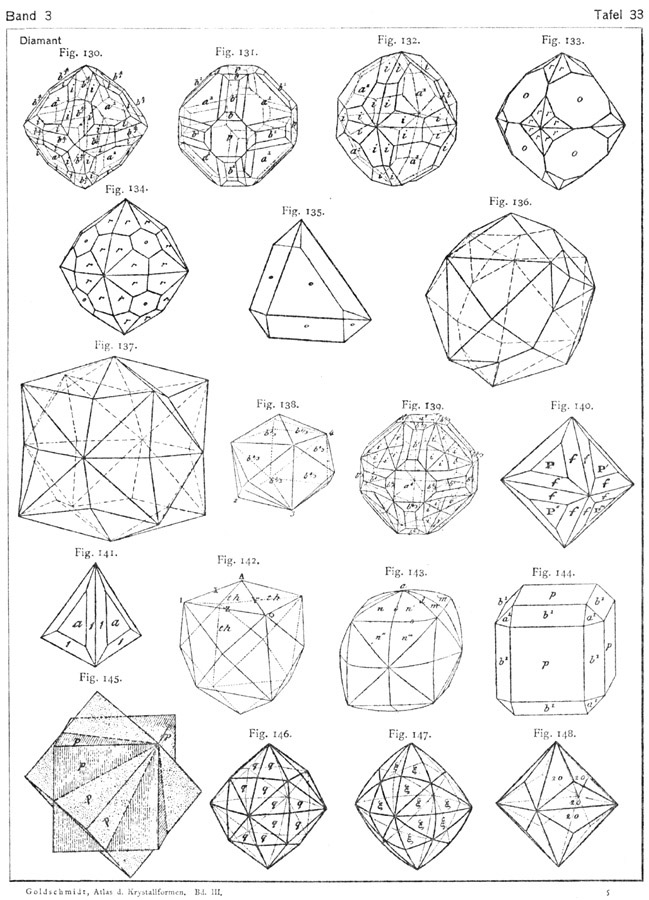

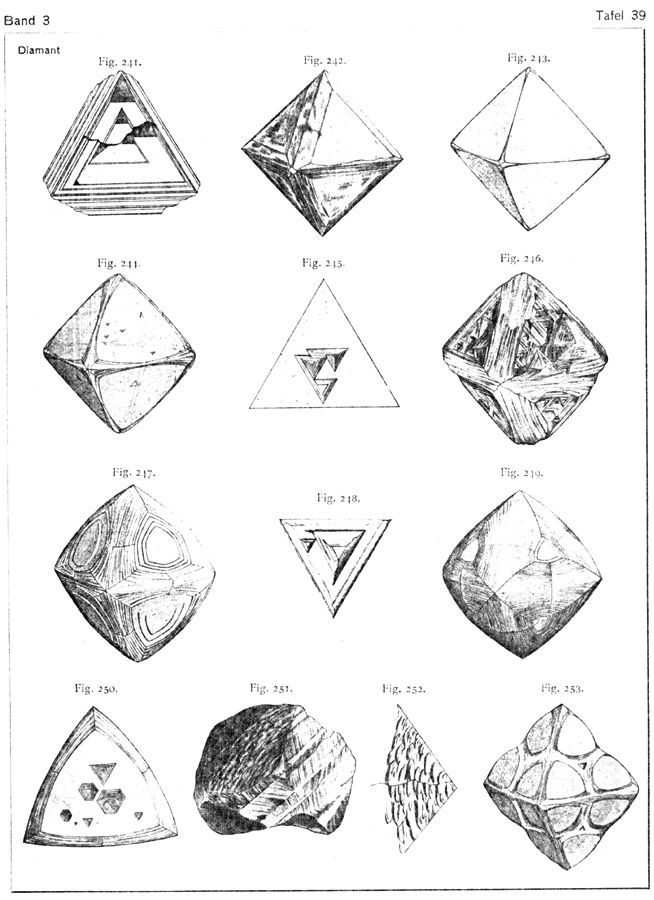

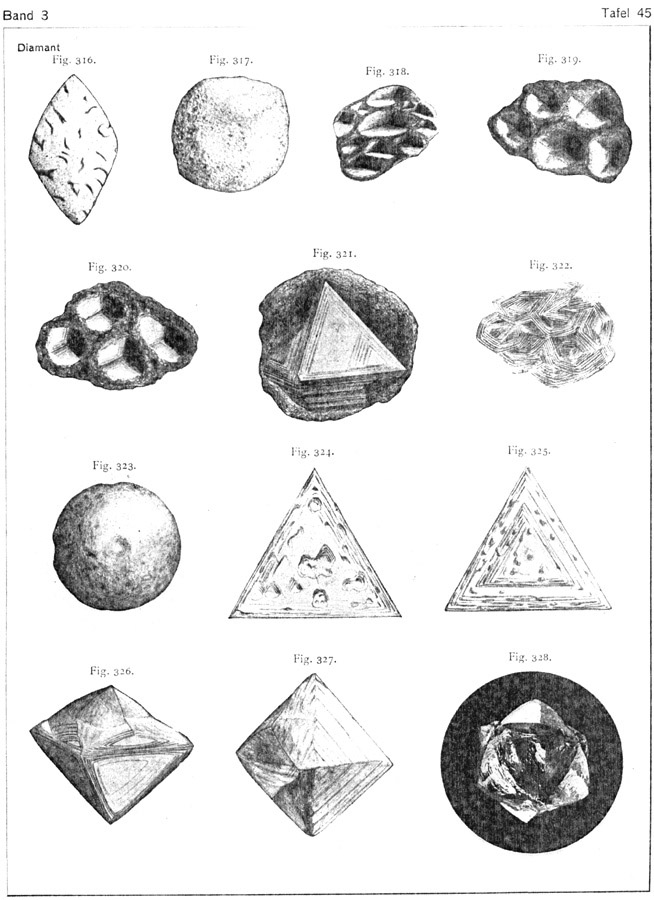

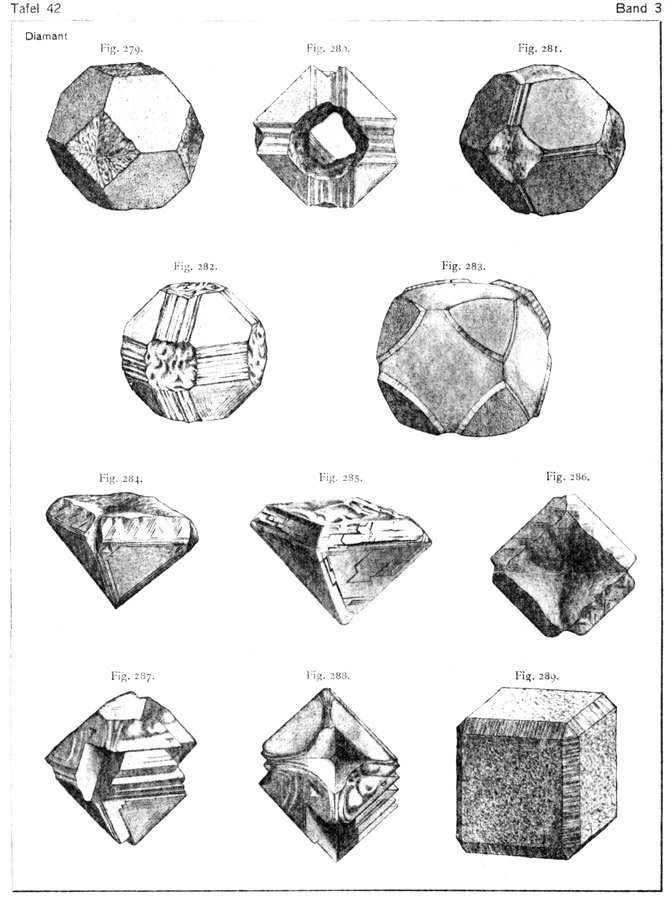

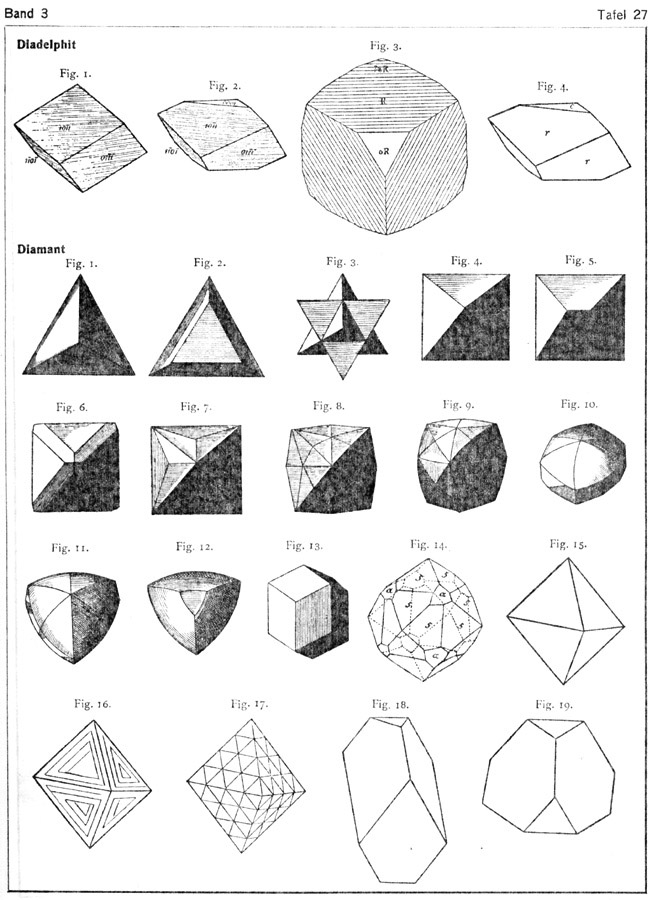

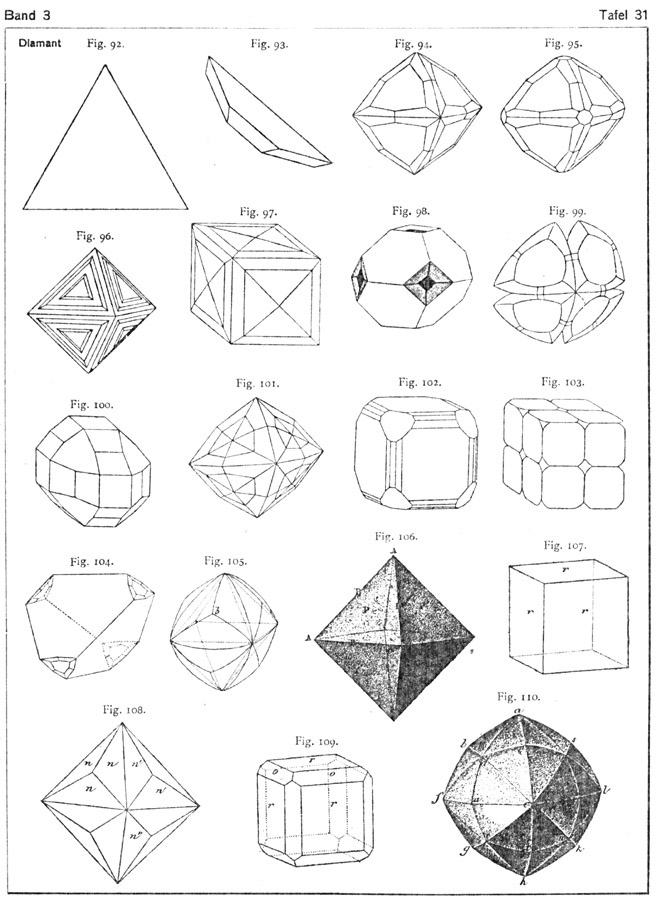

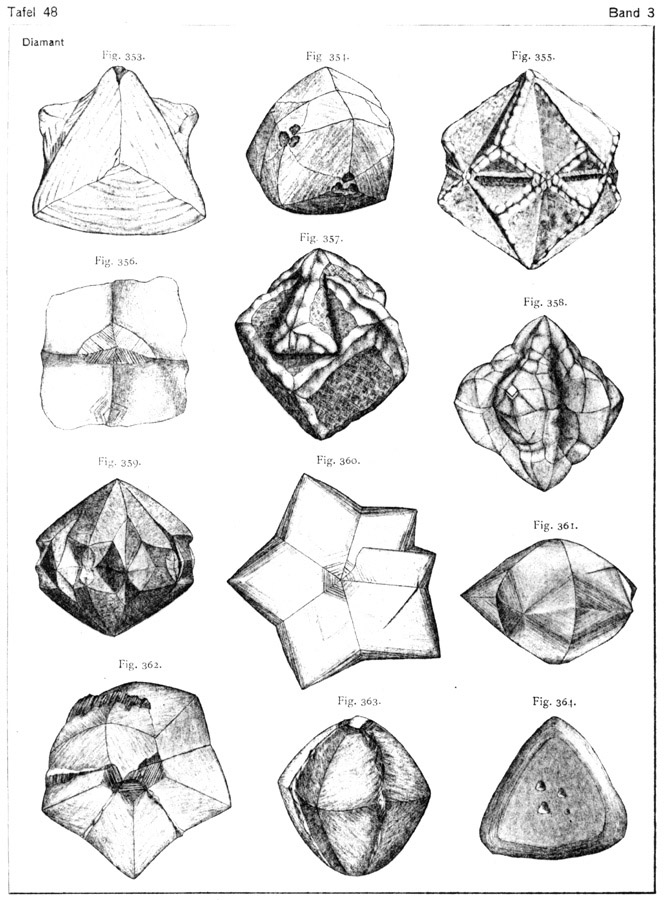

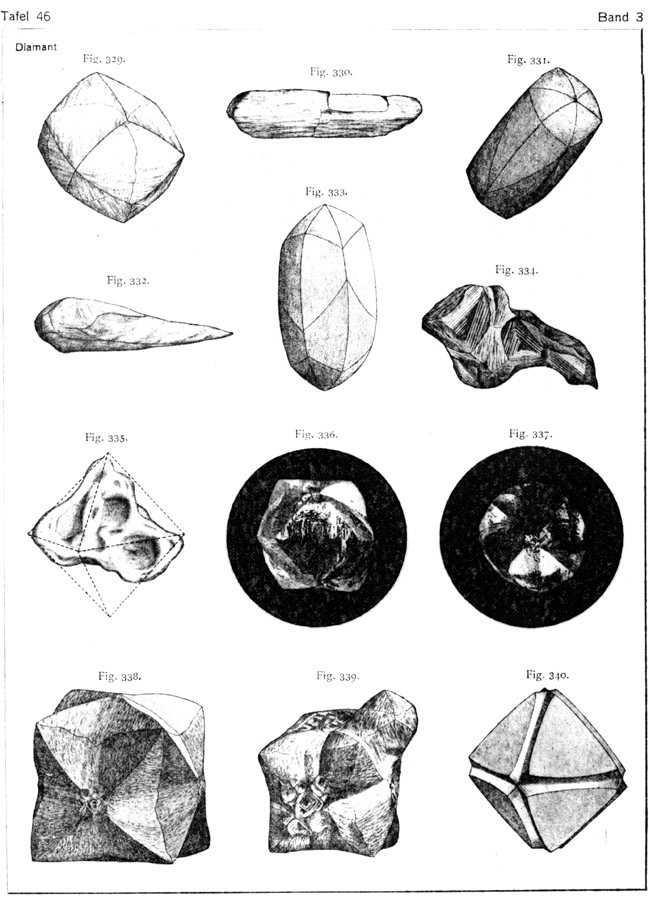

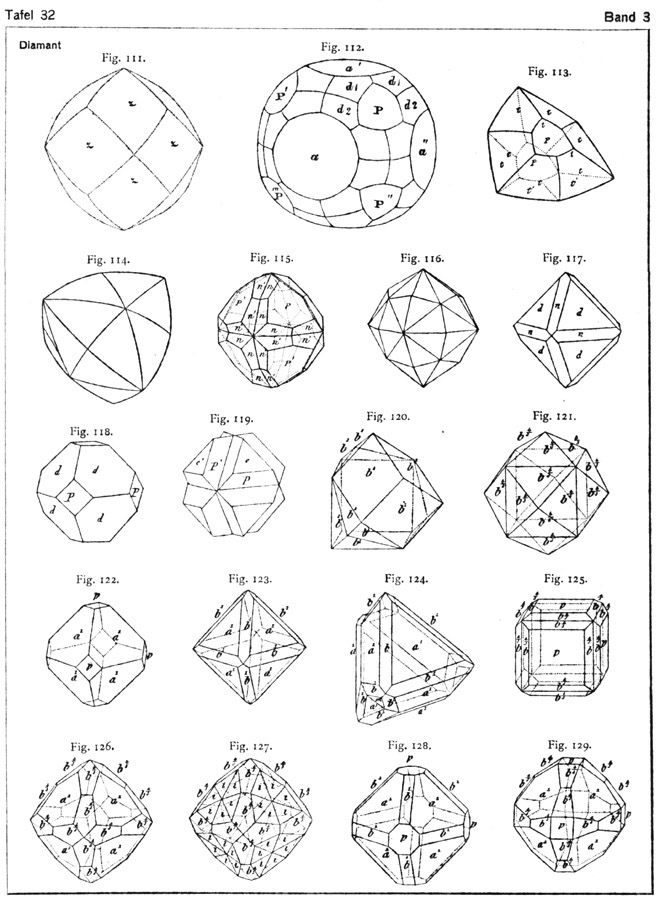

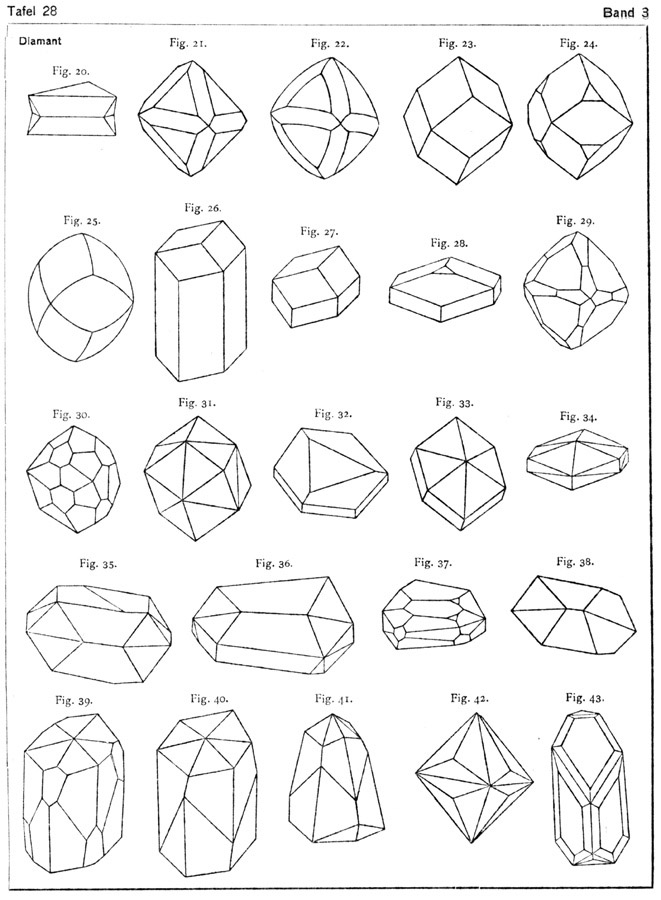

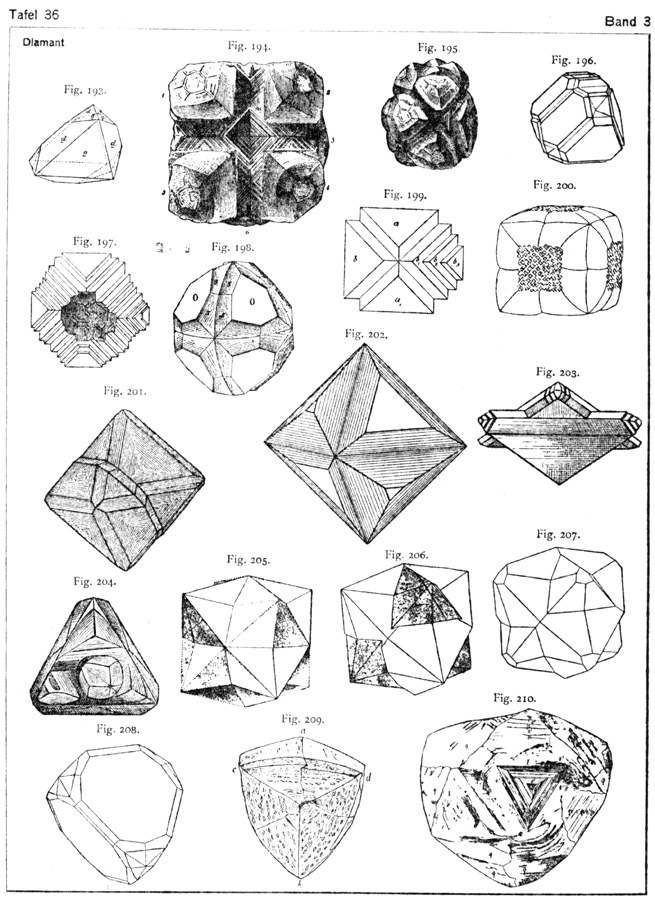

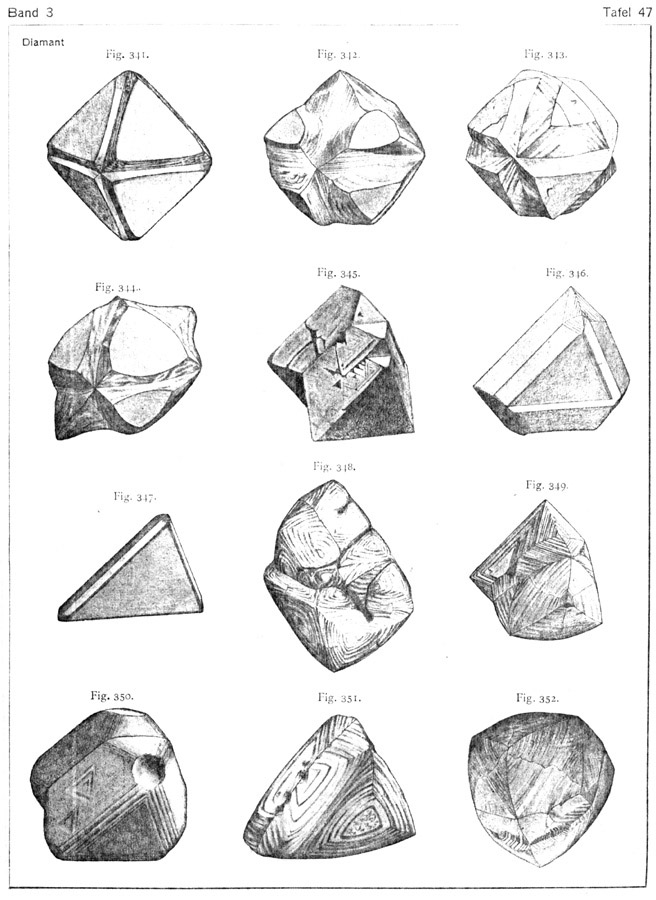

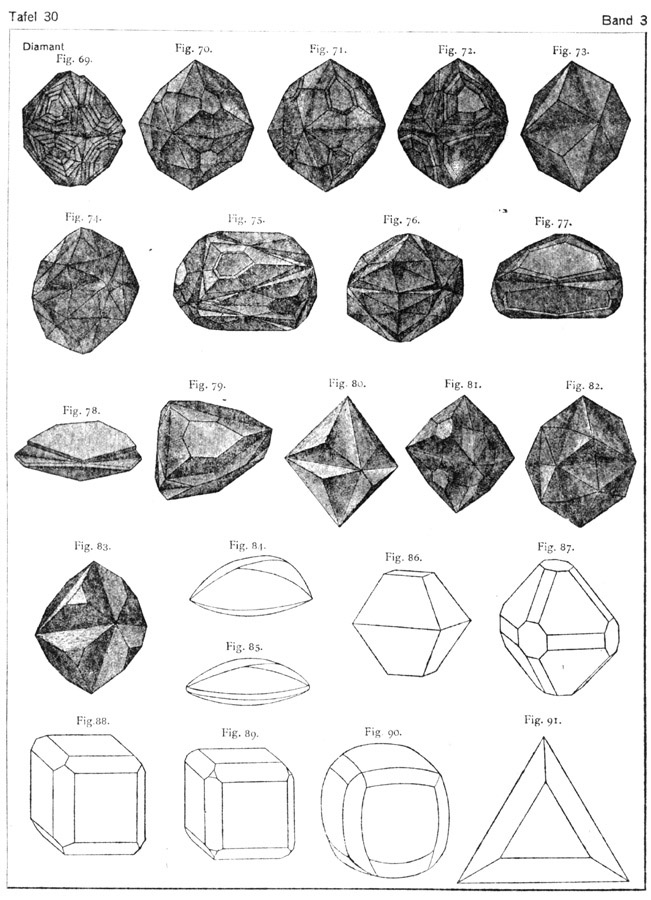

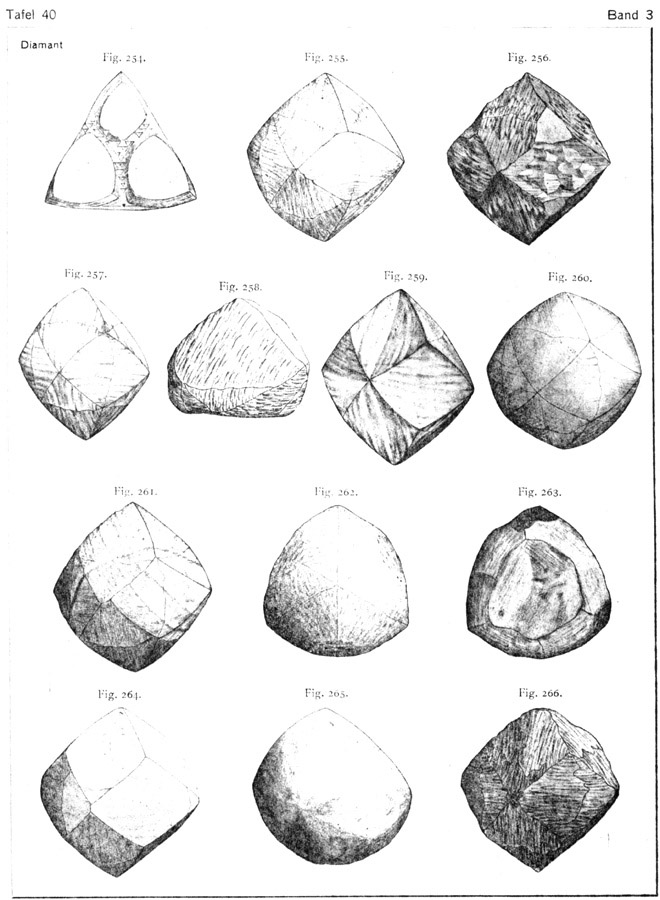

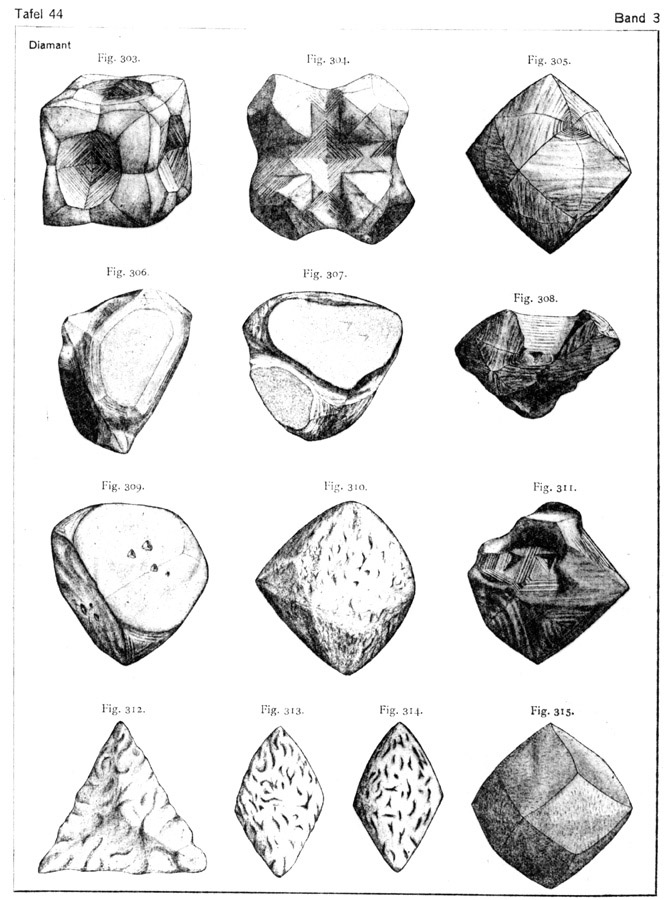

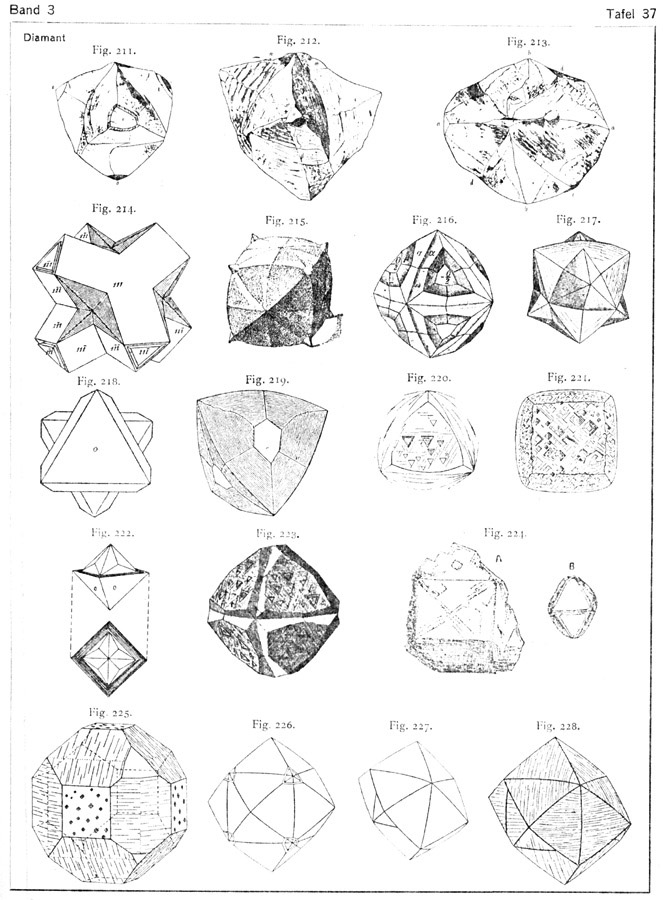

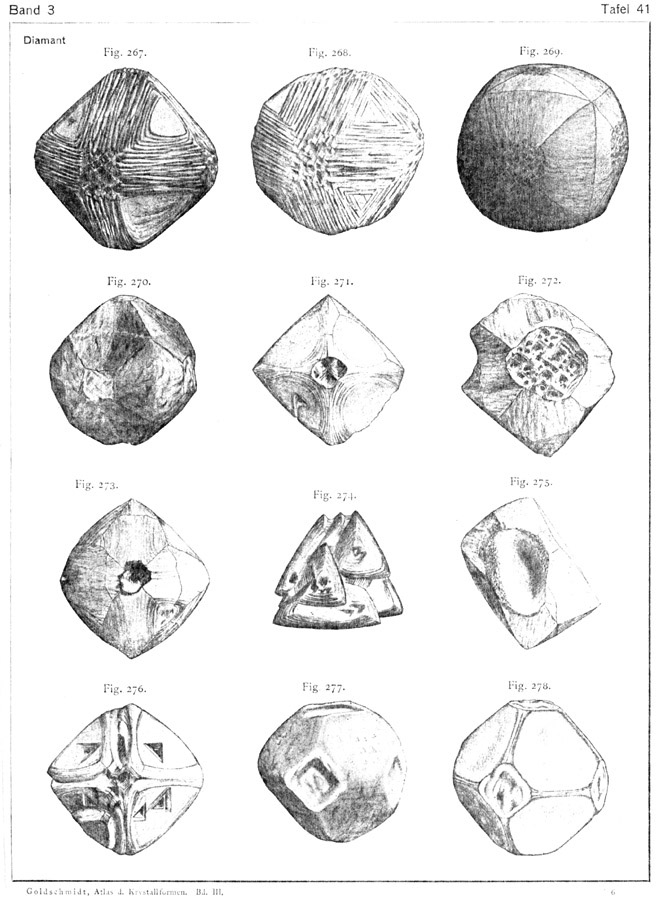

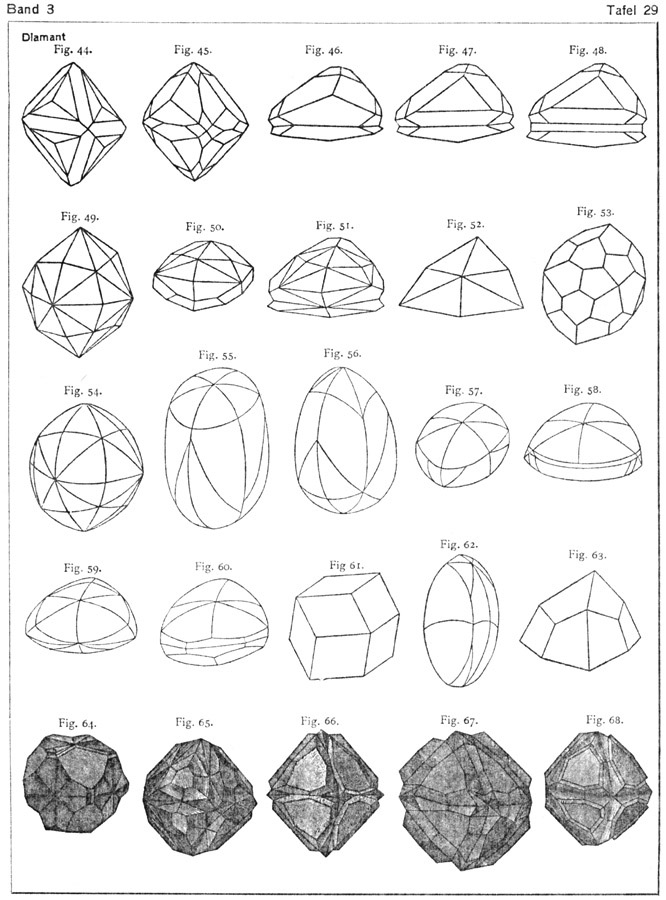

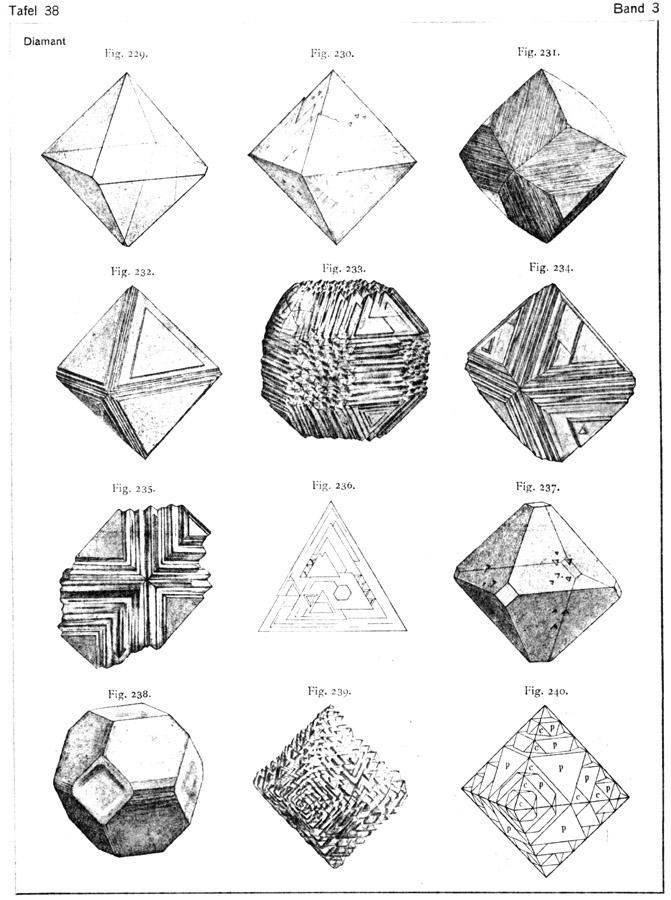

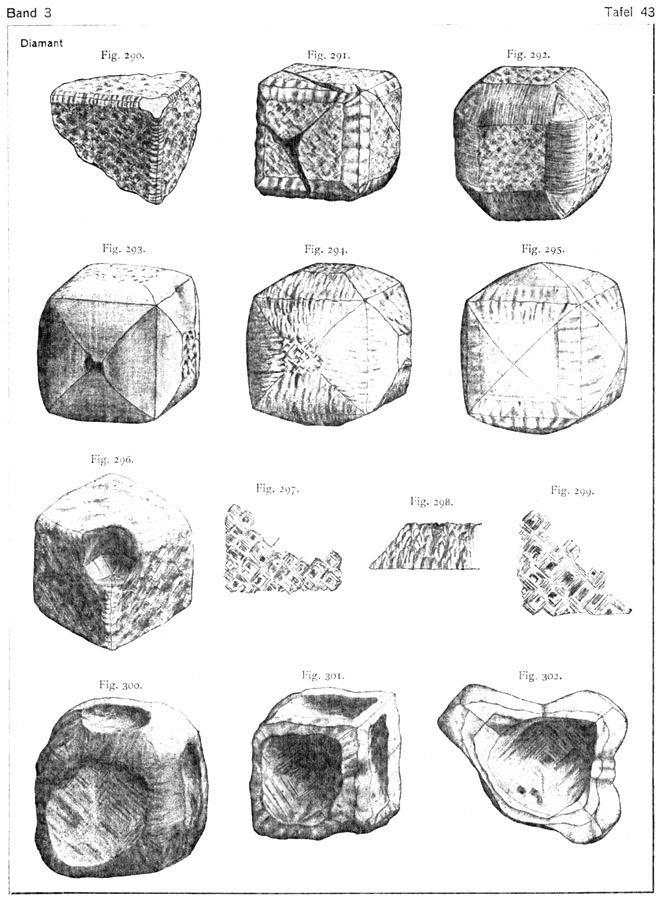

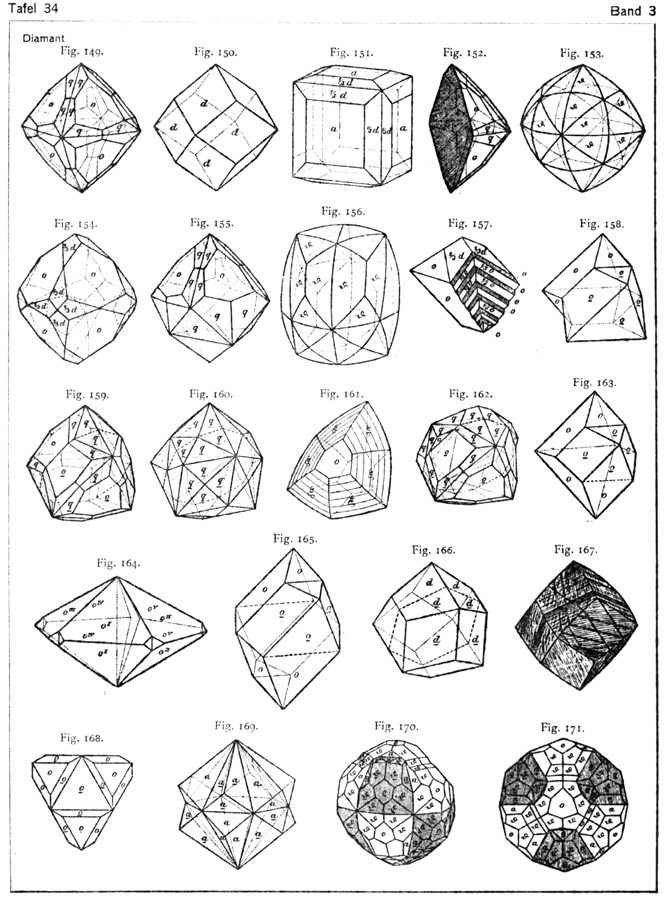

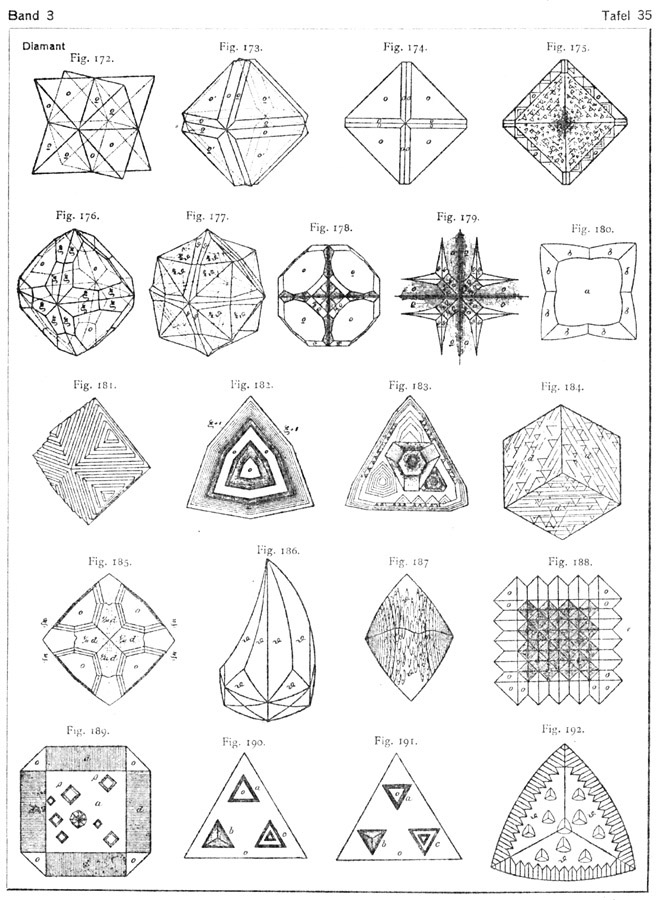

In 1916 Victor Goldschmidt published the nine volume Atlas der Krystalformen. It was a compilation of crystal diagrams from many books and references. Below are links to 300 dpi black and white scans of the 22 pages from the atlas containing diamond crystal drawings. Because the diamond drawings were derived from many different sources, the style varies from line drawings to shaded illustrations. Because these were scanned from a second-generation copy of the Atlas, the quality varies. But it is the most comprehensive collection of diamond crystal illustrations available.
